35 Ton Gap Frame Press

35 Ton Single Point Gap Frame Press - Titan Press - TM1-35

TM1-35

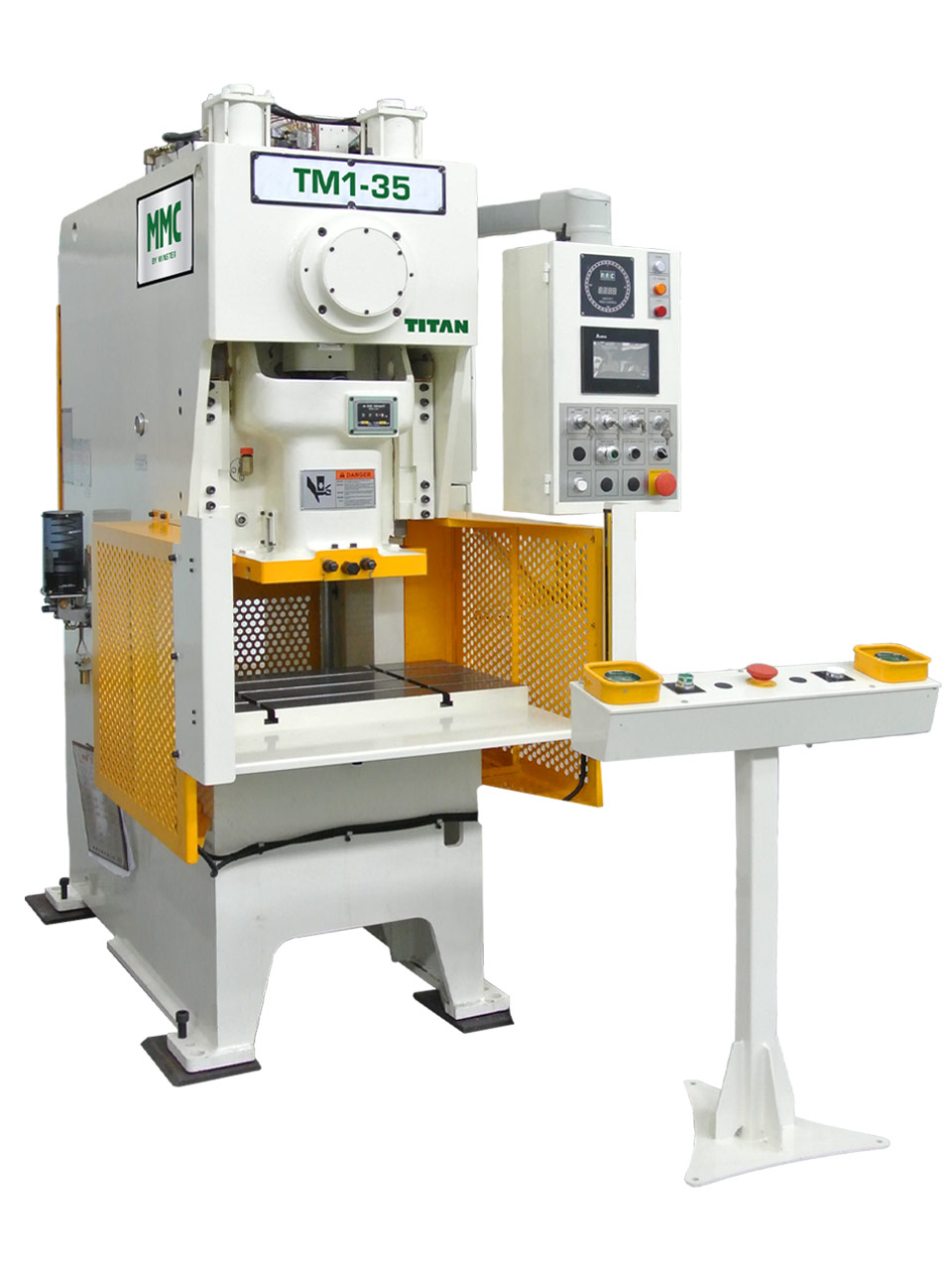

The Titan 35 Ton Gap Frame Press is OSHA/ANSI compliant.  These presses are built to our own specifications therefore making them extremely reliable and allowing us to provide all the latest features available.

In Stock

In Transit

35 Ton Gap Frame Press

Specifications

Capacity in Tons 39
Torque Capacity from BDC 0.126″
Stroke Length 2.75″
Speed Range at Full Tonnage 60-120 SPM
Area of Slide (R-L x F-B) 14.17″ x 9.84″
Recommended Max Upper Die Weight 573 lbs
Bolster Plate Thickness 3.54″
Area of Bolster (R-L x F-B) 31.49″ x 15.75″
Throat Depth (F-B) 6.88″
Bed Deflection 0.0018″
Shutheight Maximum (SDAU) 8.66″
Shutheight Adjustment 2.16″
Drive Motor 5 HP
Compressed Air Requirement 80 psi
Electrics (230V or 460V) / 3 Phase
Approximate Press Size (R-L x F-B) 31.1″ x 51.77″
Approximate Press Height 100.6″
Approximate Press Weight TBD lbs

Standard Features

  • Frame
    • Machined for Strain Links (Tonnage Monitor)
    • Drilled Provision for Knock Out Mechanism
    • Able to Accept Air Cushions
    • Pre-Drilled and Tapped to Accept Light Curtain
  • Drive Train Features a Low Inertia Design with the Gears Running in a Totally Enclosed Oil Reservoir
  • High-Performance Wet Clutch and Brake Air Actuated Combination Clutch and Brake
  • Automatic Recirculating Oil Lubrication System
  • Powered Die Height Adjustment & Electronic Die Height Indicator
  • Air Counterbalance System
  • Automatic Oil Lubrication System for Air Counterbalance Cylinders
  • Hydraulic Overload Protection
  • Die Safety Block
  • Vibration Isolation Mounts
  • Die Area Lights (2)
  • PC1 Clutch/Brake & Electrical Control System
    • Programmable Limit Switch (8)
    • Die Protection (8)

Options

  • Built-in Tonnage Monitor
  • Light Curtains
  • Servo Feeds
  • Custom Bolster Machining
  • Quick Die Change
  • Automation Systems

Variety of Gap Frame Presses

Our line of gap frame presses for metal stamping are perfect for getting the job done at a reasonable cost.. If you are looking at replacing an old press or adding to your capabilities, Titan Presses has the right size to fit your needs. Please download our brochure to see all of the specifications for each individual press side-by-side to help you make the best decision possible.

Turnkey 35 Ton Gap Frame Press Solutions

We can supply a press equipped to your exact requirements or provide a turnkey stamping line. These presses are specifically designed for the U. S. market offering the latest features available & equipped with off the shelf American supplied electrics as well as high end press controls. These presses comply with OSHA / ANSI standards. The presses and parts are stocked at our facility and may be inspected under power on our floor. Service is also through StampTech.
